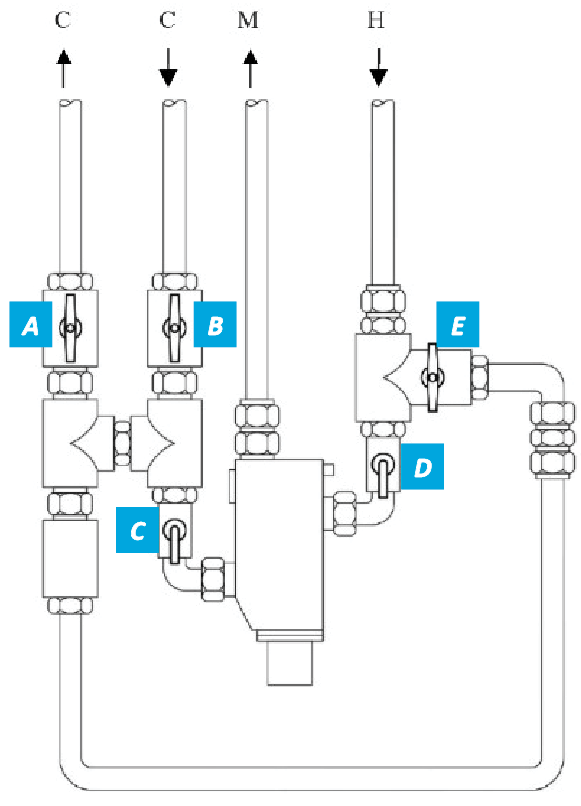

Normal mode

• Keep isolating valve “E” which is connected to the thermal loop closed
• Hot water flows through the open “D” isolating valve feeding the hot inlet to the FM Mattsson PBTMV
• Cold water flows through the open “B” and open “C” isolating valves feeding the cold inlet to the FM Mattsson PBTMV
• The FM Mattsson PBTMV then regulates the mixed water temperature for consistent and safe delivery through the open mixed water outlet downstream
• Cold water also flows through the open “A” isolating valve and feeds cold water to the outlets downstream e.g: basins/showers/baths

Thermal flush mode (mixed water outlet)

• Close isolating valves “A” and “B”
• Keep isolating valves “C” and “D” open
• Unlock open the red safety box and open isolating valve “E” to allow hot water to circulate through the thermal loop and the the cold water inlet, feeding the FM Mattsson PBTMV and flushing the mixed water line to open mixed water outlets downstream
• After flushing, close isolating valve “E” and secure close the red safety box
• Finally, open isolating valves “A” and “B” to revert to normal operation

Thermal flush mode (cold water outlet)

• Close isolating valves “B”, “C” and “D”
• Keep isolating valve “A” open
• Unlock open the red safety box and open isolating valve “E” to allow hot water to circulate through the thermal loop to flush through the cold water bypass to open outlets downstream
• After flushing, close isolating valve “E” and secure close the red safety box
• Finally, open isolating valves “B”, “C” and “D” to revert to normal operation

Features and benefits of FM Mattsson PBTMV

• Thermal flush capability
• Inbuilt non return valves and filters
• Factory pre-set to 38°C (can be re-calibrated by licensed plumber)
• Maintain a consistent mixed water temperature within ±1°C no matter what happens in the pipework
• Operates with a minimum flow rate of 1L/minute
• Operates from 50kPa to 1000kPa. Recommended working pressure 100kPa to 500kPa
• Pressure-limiting valves not required
• Suitable for multi and single point installations
• Fixed temperature knob to prevent unauthorised access
• 5-year warranty on the cartridge (*T&C Apply)
• PBTMV Made in Sweden

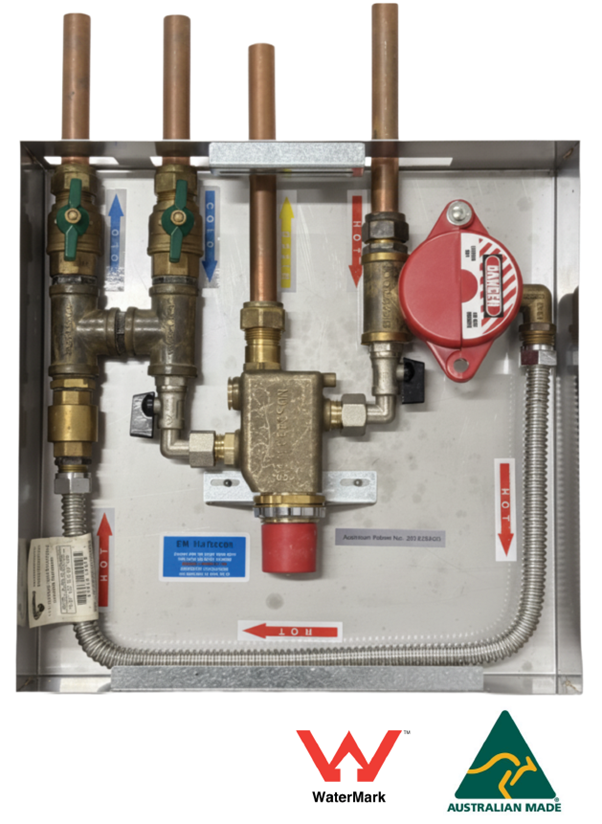

• Available in Pre-Plumbed boxes fully Australian Made

Suitable application:

• Special and aged care needs (e.g: disabled bathrooms)
• Health and aged care facilities (e.g: hospitals, nursing homes, senior living)
• Public buildings (e.g: airports, stations, community facilities, aquatic and recreational centres)
• Institutional buildings (e.g: child care facilities, schools, police stations, correctional and prison buildings, gymnasiums and sport facilities)
• Commercial buildings (e.g: hotels, shopping centres)
