YdroStop: Safety and Security for Your Plumbing System

Damage caused by a burst pipe or an overflowing sink can lead to significant property loss, inconvenience, and costly repairs. The Ydrostop (Hydro-Stop) acts as a fuse in the plumbing system, reducing the risk of flooding by automatically shutting off the water when a persistent leak or excessive flow is detected. It operates entirely mechanically—no electrical power or batteries required.

Protection Against Pipe Ruptures and High Flow Volume

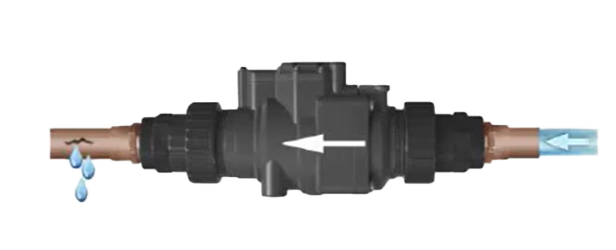

If a pipeline suddenly ruptures or if the water flow exceeds the Ydrostop’s rated capacity, it will immediately shut off the water supply to prevent extensive damage.

Water Timer and Pipeline Fuse Functionality

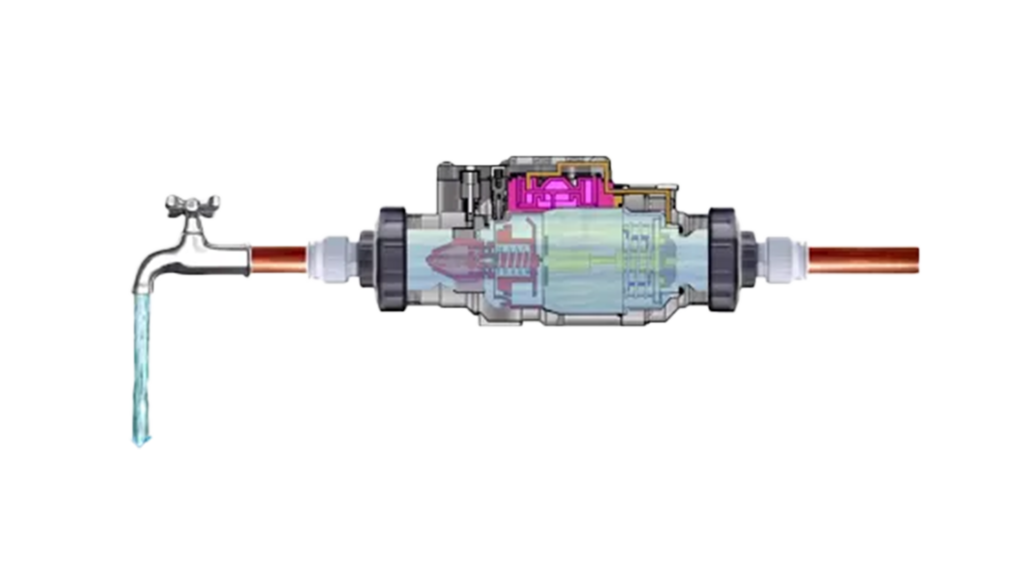

If water continues to flow continuously—whether due to a pipe leak, a running tap, or a breach in a water tank—the Ydrostop will shut off the supply once the pre-set time limit is reached. If the water flow stops naturally before reaching the set point, the Ydrostop will automatically reset to zero. The timer is adjustable between 15 and 120 minutes, providing flexibility for different plumbing needs.

Technical Specifications

  • Size: 345 x 190 x 72 mm (L x H x D)

  • Connection Filter: 3/4” BSP

  • Connection Ydrostop: 6/4” BSP

  • Weight: 1.2 kg

  • Flow Rate: Min/Max 15-28,000 L/h

  • Working Pressure: 0.5 - 6 bar

  • Pressure Tested: 25 bar

  • Temperature Range: 1°C - 30°C

  • Filter: 45 Micron

  • Material: Ydrostop PVCu Grey

  • Filter Head: PVCu Grey

  • Filter Bowl: PVCu Transparent
