Thermal Flush Legionella Control

• Only authorised staff and licensed or registered plumbing practitioners are to conduct thermal flush disinfect mode to prevent scalding during the process.
• Ensure all outlets to be flushed are unoccupied during the process.
• Ensure full compliance in accordance with all relevant and applicable codes and standards.
• Thermal Flush for legionella control – simply remove the Red Lockshield cap, wind out the valve completely to flush through the desired / maximum degree of hot water.

Features and Benefits of FM Mattsson PBTMV

• Thermal flush capability
• Inbuilt non return valves and filters
• Factory pre-set to 38°C (can be re-calibrated by licensed plumber)
• Maintain a consistent mixed water temperature within ±1°C no matter what happens in the pipework
• The pressure-balancing system ensures safety and stability even with unequal supply pressures (up to a 13:1 ratio)
• Operates with a minimum flow rate of 1L/minute
• Pressure-limiting valves not required
• Suitable for multi and single point installations
• Fixed temperature knob to prevent unauthorised access
• 5-year warranty on the cartridge (*T&C Apply)
• PBTMV Made in Sweden
• Available in Pre-Plumbed boxes fully Australian Made

Operating Parameters of FM Mattsson PBTMV

• Operating Outlet Temperature Range: the valve maintains water temperature in the range of 20°C to 50°C
• Unit must have flow control devices fitted between it and each outlet
• Operates from 50kPa to 1000kPa
• Recommended working pressure 100kPa to 500kPa
• Cold and Hot Water Temperature Inlets:
  Cold water supply: Minimum 5°C
  Hot water supply: Maximum 85°C

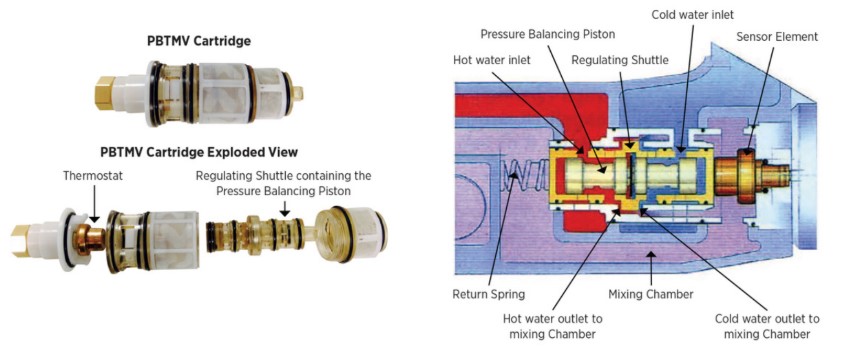

Inside the pressure piston of FM Mattsson PBTMVs

• Special and aged care needs (e.g: disabled bathrooms)
• Health and aged care facilities (e.g: hospitals, nursing homes, senior living)
• Public buildings (e.g: airports, stations, community facilities, aquatic and recreational centres)
• Institutional buildings (e.g: child care facilities, schools, police stations, correctional and prison buildings, gymnasiums and sport facilities)
• Commercial buildings (e.g: hotels, shopping centres)
