FM Mattsson PBTMV Concealed Raw

FM Mattsson Pressure Balanced Thermostatic Mixing Valve (PBTMV) Features and Benefits:

• Thermal flush capability
• Manages pressure differentials up to 13:1, eliminating the need for pressure-reducing valves
• Maintain a consistent mixed water temperature within ±1°C no matter what happens in the pipework
• The pressure-balancing system ensures safety and stability even with unequal supply pressures (up to a 13:1 ratio)
• Features double-layered protection against scalding as the valve’s piston balancing system and thermostatic wax element cut off the hot water supply within a second (true safety valve)
• Factory pre-set to 38°C (can be re-calibrated by licensed plumber)
• Operates with a minimum flow rate of 1L/minute
• Operates from 50kPa to 1000kPa. Recommended working pressure 100kPa to 500kPa
• Works seamlessly with all factory-set 50°C water heaters with a 5°C temperature differential
• Simple cartridge design, easy-to-maintain, easy changeover from older brands
• Design unchanged in over 30 years ensuring consistency with spare parts. Made it simple and cost effective to replace every 5 years
• Inbuilt non return valves and filters
• Pressure-limiting valves not required
• Suitable for multi and single point installations
• Fixed temperature knob to prevent unauthorised access
• 5-year warranty on the cartridge (*T&C Apply)
• PBTMV Made in Sweden

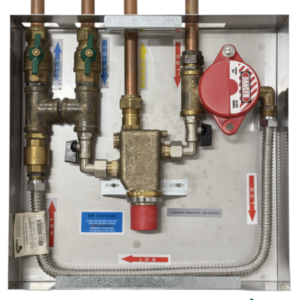

• Available in Pre-Plumbed boxes fully Australian Made

Legionella Control Flush System

• Only authorised staff and licensed or registered plumbing practitioners are to conduct thermal flush disinfect mode to prevent scalding during the process.
• Ensure all outlets to be flushed are unoccupied during the process. Ensure full compliance in accordance with all relevant and applicable codes and standards.
• Thermal Flush for legionella control – simply remove the Red Lockshield cap, wind out the valve completely to flush through the desired / maximum degree of hot water.

Suitable Applications:

• Special and aged care needs (e.g: disabled bathrooms)
• Health and aged care facilities (e.g: hospitals, nursing homes, senior living)
• Public buildings (e.g: airports, stations, community facilities, aquatic and recreational centres)
• Institutional buildings (e.g: child care facilities, schools, police stations, correctional and prison buildings, gymnasiums and sport facilities)
• Commercial buildings (e.g: hotels, shopping centres)

Flow Table

Equip your plumbing system with the FM Mattsson PBTMV 9230-8070 for unmatched temperature stability, safety, and long-term performance.
