Product Description:

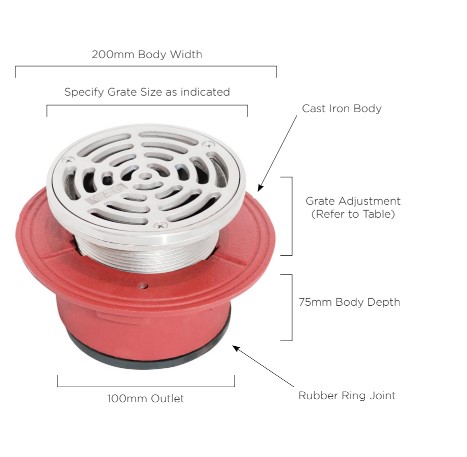

The MAG-MIFAB-F1100 Series – R Drain is a versatile and durable floor drainage solution designed for a wide range of applications. This series features adjustable grates, allowing for easy adaptation to various screed levels. Available in both round (R) and square (S) configurations, these floor drains are constructed from high-quality stainless steel, ensuring longevity and corrosion resistance.
Product Codes:
No. 70100 R / No. 70101 R / No. 70103 R
No. 70104 S / No. 70105 S / No. 70106 S / No. 70107 S
| Product Code | Grate Type and Size | Size | Flow Rate Capacity (Litres/Minute at 40mm Head) | Grate Adjustment NO Membrane Clamp (Min – Max) | Grate Adjustment Membrane Clamp (Min – Max) |
|---|---|---|---|---|---|
| 70100 | Round | 100 mm | 54 L/PM | 20 – 45 mm | 50 – 70 mm |
| 70101 | Round | 150 mm | 156 L/PM | 25 – 50 mm | 50 – 75 mm |
| 70103 | Round | 200 mm | 324 L/PM | 30 – 54 mm | 55 – 80 mm |
Spec Sheet
Click here for category brochure.
Click here for MAGFLO Commercial Roof and Floor Drains brochure.
Key Features:
Optional Accessories:
Applications:
Ideal for installation in floors, roofs, car parks, shopping centers, apartment buildings, hospitals, food processing facilities, prisons, detention centers, and educational institutions.
